1Department of Biotechnology, SR Institute of Management & Technology, Bakshi ka Talab, Sitapur Road (NH 24), Lucknow 226201,U.P., India;
2Department of Biotechnology Era University, Lucknow-226003, U.P., India;
3Regional Food Research & Analysis Centre (RFRAC), Directorate of Horticulture & Food Processing, Udyan Bhavan Campus, 2- Sapru Marg, Lucknow-226001, U.P., India
Sanjay Mishra
J. James, Mohd. Ahmad, Uday K. Gupta, P.Jha, S. Maurya, P. Gupta, R. Pandey, Amit M. Tiwari, S.K. Chauhan and Sanjay Mishra, (2022). A Review on Succession of Bioremediation Including Microbial Interventions for Reducing Heavy Metal Ions Contamination of Natural Environment. Journal of Microbes and Research. 1(2). DOI: 10.58489/2836-2187/007
© 2022, Sanjay Mishra, this is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Bioremediation, biosorption, contaminants, environment, heavy metals, microorganisms, organic matter, soil, water.
As a consequence of urbanization and industrialization, it has been a global impact on water and soil profile. These activities like industry of heavy equipment works, traffic and waste increase the conductivity, TDS (Total Dissolved Solids), pH and redox potential in the water bodies like river, canals and ponds. Also,heavy metals have an adverseeffect on soil fertility. This overview covers the enthralling succession of âBioremediationâ at physiological, biochemical and molecular level. An enhancement of heavy metal in water bodies as well in the soil in close vicinity to industriesmakes it toxic and for controlling it, bioremediation is brought into function including a series of processes, which with the assistance of metal resistance microorganisms, concentrate followed by accumulation of metal like Zinc, Cadmium, Arsenic,etc. As there is still requirement for more studiesto develop bioremediation technologies in order to find more biological solutions for bioremediation of heavy metal contamination from different environmental systems, the collection of data concomitant with significant hypotheses together with this overview provides new insights into developing a platform to explore certain novel bioremediation experimental model that could berapid, precise and cost effective.
In fact, heavy metal effluence is a serious concern because of hazardous impacts at even nano concentrations. Heavy metals are non-biodegradable, bioaccumulate in tissues and are biomagnified along with the trophic levels [1-3]. The nature of heavy metals releasedfrom the industrial waste depends on natureof industrial effluentand certain other
factors such as the innate chemical profile of the soil, climate, nature, and composition of the soil and other anthropogenic activities in the specificregion [2,4]. Subsequentreleases and the entry of heavy metals into thefood chain depend on their concentration and uptake by thelocal flora and fauna [2,5]. The genetic and epigenetic effects of these elements are associated with an increased risk of differentcancer types [1-4,6].Epigenetic mechanisms play an equally important if not a more prominent role than genetic events in carcinogenesis. These effects occur most frequently during the early stages of tumor development.Epigenetic measures includereversible modification of histone proteins and CpG islands of gene promoters that affect not only gene expression of germ and somatic cells, but also cause indirect gene-sequence changes [7,8].
In ranking the carcinogens, heavy metals have been classified by the International Agency for Researchon Cancer (IARC)and Environmental Protection Agency (EPA) as the first group, except for selenium that has been listed within group 3 (not carcinogenic to humans) of the IARC classification [9]. The impact of heavy metals on the qualityof water and soil due to urbanization and industrialization concomitant with Bioremediation applying certain potential devices has been overviewed under following headings:

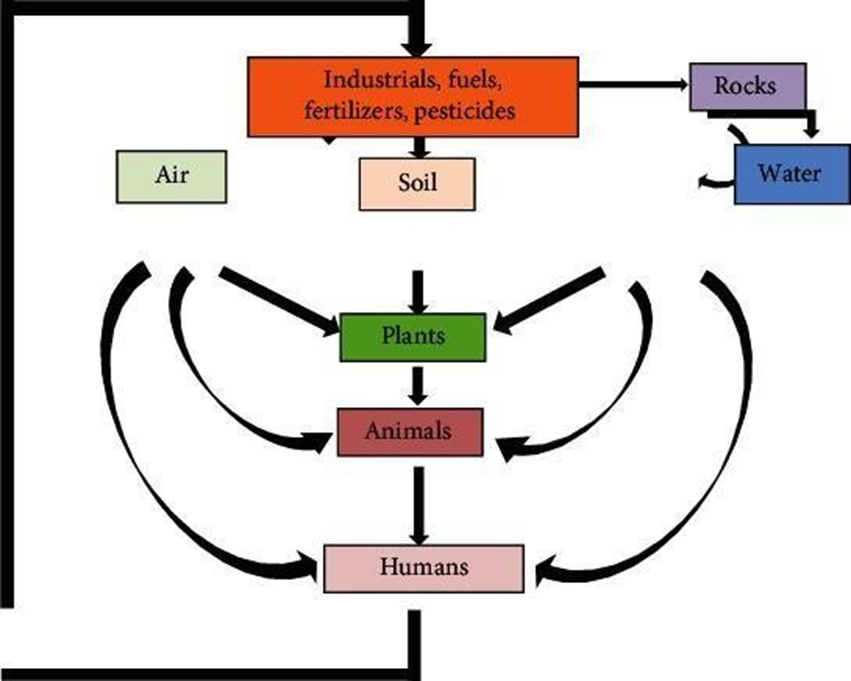

Animals includinghuman usually get exposed to the toxicants through: (a) respiratory (for gaseous and particulate matters); (b) the skin (chemicals able to cross skin barrier); (c) digestive tract (for food contaminants). Afterentering the body, the metal deposited in nasopharyngeal, tracheobronchial, or pulmonary compartments may be transported through the mucociliary action to the gastrointestinal tract. Macrophages phagocytethe wandering metals. Food is a principal source of essential and toxic elements. Some elements like mercury (Hg) are biologically magnified at higher trophic level. The dietary contribution for toxic metal intake has been extensively studied [10]. If an individual is deficient in minerals and trace elements its body will absorb heavy metals on their place. Every cell membrane breaks down and rebuilds every two weeks but does not releasethe heavy metals if essential fats are not properly ingestedor if poor quality fats are ingested. The liver that performs detoxification 100% of the time cannot perform this important task without a complete profileof essential nutrients.
Chemical elements present in the form of free ions are readilyionized and eventually get absorbed totallyby the body. Transition metals readily form stable covalentcomplexes and generallyintermingle as parts of macromolecules (proteins, enzymes, hormones,etc.) according to their chemical uniqueness including oxidation state [1,2]. The behavior of metal ion release into biofluid is regulated by the electrochemical rule. Released metal ions do not all the time combine with biomolecules to come out toxicity as active ion immediately combine with a water molecule or an anion in close proximity to the ion to form an oxide, hydroxide, or inorganic salt. Consequently, there is only a small chancethat the ion will merge with biomolecules to cause cytotoxicity, allergy, and other biological effects [11]. Health damage caused by toxic metals may be less (irritation) or acute (mutagenic, teratogenic and carcinogenic). These reactive elements of food fabricate complexes with fiber, reveal low solubility within the intestinal lumen and are weakly absorbed(Table 1). Absorption of these mineralsis augmented at low concentration of fiber, and in the absence of phytates and oxalates in the diet [12,13]. Micronutrients can interact with toxic metalsin the body at severalpoints: (a) absorption; (b) transport; (c) binding to target proteins; (d) metabolism; (e) sequestration; (f) excretionof toxic
Metal | Food Source |
Pb | Egg, cocoapowder, rice, wheat,potato, calcium supplement, smoked food, wine,beer, milk, carrot, raisins |
As | Green papaya,rice, tomato, carrot, seafood, Indian mustard, bovine and chickenmeat, wine, milk |
Hg | Egg, mushroom, seafood, fish oil |
Cd | Egg, fish, mushroom, garlic, spinach, wheat,rice, oat, corn,soyabean, peanuts, mushroom |
Source: Reference: [1,13] metals; and (g) finally in secondary symptoms of toxicity such as oxidative stress. The role of oxidative stress in the destruction of immune cells has been elucidated [14-17].Therefore, a diet poor in micronutrients can lead to enhancement in the toxicity. The prevalence and mortalitydue to multifactorial polygenic diseases;hypertension, coronary artery disease (CAD), diabetes and cancer vary depending upon enetic susceptibility as well as environmental pollutants generated as a consequence of numerous chemicals, metal ions and metalloids. Speedy changes in diet and lifestyle may manipulate heritability ofthe variant phenotypes that are dependenton the nutraceutical or functional food supplementation for their expression [18]. It is possible to recognize the interaction of specific nutraceuticals, with the genetic code possessed by all nucleated cells. There is evidence that South Asians have an increasedsusceptibility to CAD, diabetesmellitus, central obesity and insulin resistance at younger age, which may be due to interaction of gene and nutraceutical (especially micronutrients) environment. These populations appear to have enherited predisposition and may have interaction of internal nutritional status and environmental factors, mainly metal ions. Higher intake of refined starches and sugar increases generation of super oxide anion in the leucocytes and mononuclear cells, and free fatty acids (FFA), as well as higher amount and activity of nuclear factor-kB (NF-kB), a transcriptional factor regulating the activity of at least 125genes, most of which are pro-inflammatory [18]. Glucose intake also causes an increasein two other pro- inflammatory transcription factors; activating protein-1 (AP- 1) and early growth response protein-1 (Egr-1), the first regulating the transcription of matrix metallo-proteinases and the second modulating the transcription of tissue factor and plasminogen activator inhibitor-1. Refined food, mixed meal inducesactivation of NF-kB associated with free radicals’ generation by mononuclear cells. The superoxide anion is an activator of at least two major pro inflammatory transcription factors, NF-kB and AP-1. Increased intake oflinoleic acid, saturatedfat, trans fat and refinedstarches and sugars can increase the generation of free radicals and activate the NF-kB, leadingto rapid expression of proinflammatory genes. It is possible that nutraceuticals; antioxidants, micronutrients, minerals, vitamins, coenzymeQ10 and w-3 fatty acids may inhibit the generation of super oxideand suppress NF-kB as well as AP-1, and Egr-1 leading to suppression of phenotypic expressions. It is known that genes are important in determining enzymes, receptors, cofactors, structural components involvedin regulation of blood pressure,the metabolism of lipids, lipoproteins and inflammatory and coagulation factors that are involvedin determining individual risk for vasculardiseases and diabetes.It seems that these phenotypic expressions may be silenced by targeting simple sequence differences known as single nucleotide polymorphisms (SNP) by nutraceuticals and slowly absorbed wild foods or functional foods enriched with certain protective macro- or micro-nutrients as well as nutraceuticals [18].
In biological fluids and tissues,the majority of metals and metalloids are not present as free cations. In blood they are generally bound to red cells or to plasma proteins. Lead and cadmium are almost totally bound to red blood cells. The chemicalelements bound to plasma proteins constitute the fraction available for transport into and out of the tissues. Albumin, a plasma protein, has an enormous capacityto bind several metals.
In view of avoidingundesirable health hazardsconsequent of "excessive" intake of toxicants(including toxic metals),international and nationalscientific organisms such as FAO/WHO, FDA, European Union, etc have used the safety factor approach for establishing acceptable or tolerableintakes of substances that exhibit threshold toxicity [19,20]. The acceptable daily intake (ADI) or Endurabledaily intake (EDI) or provisional endurable weekly intakes(PEWI) are used to describe"safe" levels of intake for several toxicants including toxic metals [21]. For chemicals that give rise to such toxic effects, a tolerable daily intake (EDI), i.e., an estimateof the amount of a substance in food, expressed on a body weight basis (mg.kg-1 or mg.kg-1 of body weight)that can be ingested over a lifetime without appreciable health risk. Exposureover and above the TDI value for short periods has not been reported to reveal deleterious effects on human health [19-21].However, acute effectsmay occur if the TDI is substantially exceeded even for short periodsof time. Besides,contaminants possessing very long half-lives can be accumulated in the body and chronic effectsare most often observed when critical concentrations are reached in target tissues.The comprehensive accountof health hazards rendered principally by aluminium (Al), arsenic (As),cadmium (Cd), lead (Pb), mercury (Hg), Selenium (Se) and Lithium(Li) is represented as follows:
Recently,a range of processes of heavy metal bioremediation, such as biosorption, bioleaching, biomineralization, biotransformation, and intracellular accumulation, as well as the application of genetically modifiedmicrobes and immobilized microbial cells for heavy metal bioremediation, have been well overviewed [66]. For the elimination of heavy metal ions from the polluted sites,bioremediation methods are in practice[67]. Generally, these techniques engrossthe absorption/adsorption of toxic metal ions, reducingassociated side effects[68]. In additionto various natural resources like wood bark/dust, coconut husk/shells, agro wastes, seaweeds,seeds, discarded coffee beans, and aquatic plants,microorganisms are beingused frequently to reduce the number of metal ions from the place of their source,in which microbes(algae, fungi, bacteria,yeasts, etc.) play a pivotal role [69]. Microbes transform the heavy metals’ionic state ultimately influencing the solubility, bioavailability and movementin the soil as well as in the aquaticambiance [70]. Mobilization or immobilization of heavy metals assists microbialremediation that is next followedby oxidation-reduction, chelation, modification of the metallic complex,and biomethylation [67]. The enzymatic catalysis by microbes solubilizes the metals with higher oxidation state to lower oxidation state, e.g., Thiobacillus ferrooxidans and Serratia, are commonly applied[71, 72]. Metal transformation, immobilization, chelation, or solubilization is supported by the fabrication of exopolysaccharides by plant growth promoting bacterium(PGPB), like oxidases,reductases, siderophores, and organic acids, thus, promotingphytoremediation of heavy metal ions. PGPB reduces the pH of the soil by producing organic acids, ultimately aiding in the removal of heavy metal ions. Metal resistant siderophore-producing bacteriafound in the vicinity of rhizosphere deliver nutrients to the plants, namely, iron,possibly reducing the negative consequences of metal pollution [73, 74]. Siderophore (metal-chelating agents with low molecular masses, ranging 200–2000 Da, produced by microorganisms and plants,especially under Fe-limiting conditions) is also accountable for the formation of stable complexeswith radionuclides and metals concerning environment like Cd, Ga, Al, Cu, Zn, In, and Pb [75, 76]. The synergistic effects of bioaugmentation and phytoremediation leading to rhizoremediation may triumph over the difficulties that arise while both processes are employed distinctly. Furthermore, the remediation of heavy metals with the aid of higher plants has also been reported [76, 77]. It has also been observedthat planting Salix in Cd-polluted soil improved the diversity of beneficial microbes, such as thebacteria genera Arthrobacter and Bacillus [77]. Plant- associated microorganisms play an important role in controlling heavy metal uptake and accumulation in aerial parts. The microbial community and its interaction with Cd accumulation by willow were assessedto explore the association of phytoextraction efficiency and rhizosphericmicrobial populations [77]. Therefore, the rhizosphere microbial compositions of three willow genotypes grown in two Cd polluted sites were investigated, focusing on their interactions with phytoremediation potential. Principal coordinate analysisrevealed a significant effect of genotypeon the rhizosphere microbial communities [77]. Distinct beneficial microorganisms, such as plant growth promoting bacteria (PGPB) and mycorrhizal fungi, were assembled in the rhizosphere of different willow genotypes. Linear mixed models showed that the relative abundance of PGPB was positively associated (p < 0.01) with Cd accumulation, since these microbes significantly increased willow growth. The higher abundance of arbuscular mycorrhizal fungi in the rhizosphere of Salix × aureo-pendula CL 'J1011' at the Kejing site, showed a negative correlation with the Cd content, but a positive correlation with biomass [77]. On the other hand, mycorrhizal fungi, were more abundant in the rhizosphere of S. × jiangsuensis CL. 'J2345' and positively interrelated with the Cd content in willow tissues. This study provides new insightsinto the distinctive microbial communities in rhizosphere of different willow genotypes,which may probably be consistent with the phytoremediation prospective [77].
Bioremediation is a straightforward procedure used by several researchers in the waste treatment processfor contaminated environments such as soil and water. The microbial organisms that degrade the contaminant augmentin numbers and release harmlessproducts. The residuesfor the treatmentare generally harmlessproducts, namely, carbondioxide, water and cell biomass.Bioremediation is of basically very less effort, less laborious, as well as cost effective compared to other methods that are in practice for the removal of hazardous waste.Besides, bioremediation is ecofriendly, sustainable, reasonably easy to implement, and useful for the total destruction of a wide range of contaminants [78]. Many hazardouscompounds can be altered into harmless products. Furthermore, bioremediation can be implemented on the site of contamination itself without causing a principal disruption of standard activities.There is no need of transporting huge numbers of waste off- site, there is no latent human health risk, and the environment will continue uncontaminated. The majority ofthe disadvantages of bioremediation narrateto it requiring a longer time to be accomplished as compared with other options, namely,excavation and removingpollutants from the site. Moreover, there is a complexity of bioremediation in treating inorganiccontaminants and in ascertaining whethercontaminants have been perfectly destroyed or not. In addition, there is a sluggishness of highly chlorinated materials biodegradation and generation of extra toxic or carcinogenic by-products [79]. Lastly, the products of biodegradation sometimesbecome more toxic than the original compound. Its biological processes are also highly specific with efficient site factors including the presence of microbial populations, growth conditions, and quantity of nutrients concomitant with pollutants [65, 80-82].
Bioremediation techniqueis still a useful,natural, and environmentally friendlyprocess in which the polluted environment is biologically biodegraded. Microorganisms play a pivotalrole in the removal of heavy metalspollutants. The heavy metals (e.g.,mercury, silver, lead, cadmium, and arsenic) exert toxic effects on living cells. Examples of degradative aerobic bacteriaare Pseudomonas, Alcaligenes, Sphingomonas, and Rhodococcus. Certain technical strategies i.e., microbe- based as well as hybrid have been discussed, which are presently being applied to mitigate heavy metal contamination in soils and other contaminated surroundings like air. Because of the contribution in the regulation of biogeochemical cycles,influencing climate, soil structure, and fertility, the environmental microbiome is notion to play a pivotal role. Besides, fungus microorganisms can efficiently degrade numerous toxic environmental pollutants. Nevertheless, phytoremediation represents an emerging technology all the way through that plants can be employed to eradicate pollution from soil, water, and air. Bioremediation is of very less effort,less laborious, cost effective, eco-friendly, sustainable, and comparatively easy to implement. The majority of the disadvantages of bioremediation narrate to the slowness and time-consumption; moreover, the products of biodegradation occasionally becomeextra toxic than the originalcompound. Bioremediation may be restricted by irregularity and uncertainty of totality. Though,sustainable policies have been developed and revised frequently, the performance evaluation of bioremediation might be complicated as there is no up to standard endpoint.As there is still requirement for more studies to developbioremediation technologies in order to find more biological solutionsfor bioremediation of heavy metal contamination from diverse environmental systems, the collection of data concomitant with significant hypotheses together with this overviewprovides new insightsinto developing a platform to explore certain novel bioremediation experimental model that could be rapid, preciseand cost effective. Nevertheless, awareness of the negative effects, as well as awarenessof how to reduce heavymetals pollution in the environment (soil, air and water)should be expanded.
This review article is an extended and updated versionof the paper [Mudgal,V., Madaan,N., Mudgal, A., Singh, R.B., Mishra, S. (2010). Effect of
Toxic metals on human health.The Open Nutraceuticals Journal3: 94-99.
Authorsdeclare no conflictof interests.
This article is the consequent of joint ventureamongst Department of Biotechnology, SR Institute of Management & Technology, Bakshi Ka Talab, Lucknow- 226201, U.P., India; Department of Biotechnology, Era University, Lucknow226003, U.P., India; and Regional Food Research & Analysis Centre (RFRAC), Lucknow-226001, U.P., India. Authors are grateful to Mr. PawanSingh Chauhan, Chairman, SR Institute of Management & Technology, Bakshi Ka Talab,Lucknow- 226201, U.P., India for his generoussupport and throughout inspiration for accomplishment of this study. Besides, authorsare thankful to members of Board of Directors, SR Institute of Management & Technology, Bakshi Ka Talab, Lucknow- 226201, U.P., India for providing necessary facilities and time-to-time encouragement for exploring the R&D in the area of Biotechnology.
